Mesin pelabelan film OPP lem panas (hot-melt) 12.000–24.000 botol/jam dengan kontrol servo Schneider, pengarah web otomatis, drum pemotong putar, dan drum vakum.
Mesin Pelabelan Lem Panas (Hot Melt OPP) Kecepatan Tinggi (T-215) achieves ±1mm (excluding bottle & film tolerances) labeling accuracy at speeds of 12,000–24,000 bottles/hour (200–400 pcs/min). Applicable product size: Round, Square & Flat Plastic/Glass Bottles, Metal Cans (Max Label Length: 750mm); label size: Roll-fed OPP / Pearlescent / Paper-Plastic Film | Max Roll OD: Ø600mm (Core Ø152mm); machine footprint: 4650 × 1650 × 1650 mm (L×W×H) (AC 380V 50/60Hz (Total Power: Approx. 11 kW, Working ~6 kW) | Air: 0.6–0.8 MPa, Approx. 2,000 kg).
Standard factory configuration parameters. Non-standard dimensions and speed upgrades can be customized.
| Parameter | Specification Value | Engineering Note |
|---|---|---|
| Kode Model | T-215 | Dongguan Henglitong Standard / Custom Series |
| Akurasi Pelabelan | ±1mm (excluding bottle & film tolerances) | Servo / Stepper Closed-Loop Control |
| Kecepatan Pelabelan | 12,000–24,000 bottles/hour (200–400 pcs/min) | Adjustable via PLC Touch Screen |

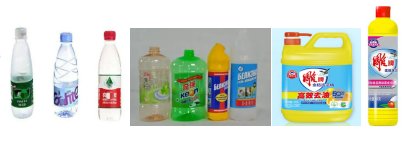

| Ukuran Produk yang Sesuai | Round, Square & Flat Plastic/Glass Bottles, Metal Cans (Max Label Length: 750mm) | Custom fixtures available for special shapes |
| Ukuran Label yang Sesuai | Roll-fed OPP / Pearlescent / Paper-Plastic Film | Max Roll OD: Ø600mm (Core Ø152mm) | Supports opaque or transparent self-adhesive labels |
| Dimensi Mesin (P×L×T) | 4650 × 1650 × 1650 mm (L×W×H) | Heavy-duty stainless steel & anodized aluminum frame |
| Daya Listrik | AC 380V 50/60Hz (Total Power: Approx. 11 kW, Working ~6 kW) | Air: 0.6–0.8 MPa | 110V/220V/380V 50/60Hz configurable for destination country |
| Berat Bersih | Approx. 2,000 kg | Export fumigation-free wooden crate packaging |
| Diameter Dalam Inti Roll | Ø152 mm (6-inch OPP film core) | Standard industrial roll core |
| Diameter Luar Maks. Roll | Max. Ø600 mm | High-capacity unwind disc |
| Konfigurasi Opsional & Coding | Schneider Electric servo & motion controller; Automatic web-guiding correction; Rotary cutter drum + vacuum suction drum; 120–160°C head-and-tail hot-melt glue applicator | Ribbon coder, inkjet, vision inspection, inline conveyor |
| Industri Aplikasi | Mineral Water & Beverage, Carbonated Soft Drinks, Edible Oil & Condiments, Metal Cans & PET Bottles, Daily Chemical | 74+ verified industry cases available |
Model ini mendukung rentang ukuran di atas dan dapat dilengkapi cetakan/jig kustom sesuai sampel Anda. Dapat beroperasi mandiri (standalone) atau terhubung ke konveyor pengisian/pengemasan.
Kecepatan aktual (pcs/menit) bergantung pada dimensi wadah, panjang label, dan metode pengumpanan. Kirimkan ukuran wadah dan label Anda agar teknisi kami dapat menghitung kapasitas tepatnya.
Tersedia ribbon date coder, printer inkjet CIJ/TIJ, sensor optik untuk label transparan, inspeksi kamera, serta penyesuaian tegangan listrik negara tujuan.
Isi formulir di bawah atau hubungi WhatsApp (+86 15549490127). Kirimkan sampel wadah dan gulungan label ke pabrik Dongguan kami—kami akan merekam video uji tempel HD secara gratis.
Tim 10 insinyur mekanik & PLC kami mendampingi proyek Anda. Setiap pengiriman dilengkapi video FAT, buku panduan, diagram sirkuit, paket suku cadang aus, dan panduan video jarak jauh.
