Intelligent Automatic Corner Labeling Machine (T116)

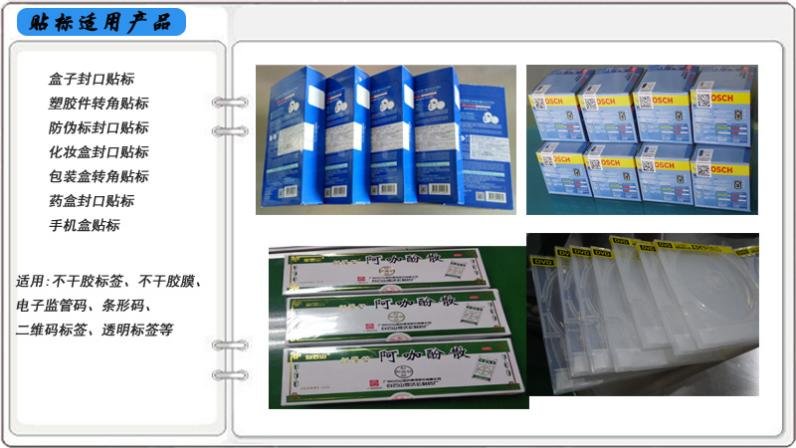

Dedicated to 90-degree L-shape and corner tamper-evident security sealing across upper/lower planes and side flaps on pharmaceutical cartons, poker boxes, smartphone packaging, and cosmetic boxes at 40–150 pcs/min.
Intelligent Automatic Corner Labeling Machine (T116) achieves ±1mm (excluding product & label tolerances) labeling accuracy at speeds of 40–150 pcs/min (related to product & label size). Applicable product size: L: 40–300mm | W: 30–200mm | H: 10–100mm; label size: Length: 10–150mm | Width: 10–150mm; machine footprint: 2000 × 850 × 1450 mm (L×W×H) (AC 110–220V / 50Hz | Air Pressure: 0.4–0.6 MPa, Approx. 200 kg).
T116 — Technical Parameters Table
Standard factory configuration parameters. Non-standard dimensions and speed upgrades can be customized.
| Parameter | Specification Value | Engineering Note |
|---|---|---|
| Model Code | T116 | Dongguan Henglitong Standard / Custom Series |
| Labeling Accuracy | ±1mm (excluding product & label tolerances) | Servo / Stepper Closed-Loop Control |
| Labeling Speed | 40–150 pcs/min (related to product & label size) | Adjustable via PLC Touch Screen |
| Applicable Product Size | L: 40–300mm | W: 30–200mm | H: 10–100mm | Custom fixtures available for special shapes |
| Applicable Label Size | Length: 10–150mm | Width: 10–150mm | Supports opaque or transparent self-adhesive labels |
| Machine Dimensions (L×W×H) | 2000 × 850 × 1450 mm (L×W×H) | Heavy-duty stainless steel & anodized aluminum frame |
| Power Supply | AC 110–220V / 50Hz | Air Pressure: 0.4–0.6 MPa | 110V/220V/380V 50/60Hz configurable for destination country |
| Net Weight | Approx. 200 kg | Export fumigation-free wooden crate packaging |
| Label Roll Inner Core | Ø76 mm | Standard industrial roll core |
| Label Roll Max Outer Dia. | Max. Ø300 mm | High-capacity unwind disc |
| Optional Configurations & Coding | Transparent security label fiber-optic sensor; Dual-head bilateral corner sealing upgrade; Thermal ribbon coder or inkjet printer | Ribbon coder, inkjet, vision inspection, inline conveyor |
| Target Industries | Pharmaceutical Cartons, 3C & Smartphone Boxes, Playing Cards & Poker Boxes, Cosmetics & Gift Boxes | 74+ verified industry cases available |
5 Key Procurement Questions Answered for This Model (T116)
1. Does this machine fit my bottle, box, or existing production line?
This model handles container dimensions within the specified range above and supports custom starwheels, centering chains, or contoured fixtures for special shapes. It can run standalone or connect directly to upstream filling/capping conveyors.
2. What material parameters determine the actual labeling speed and accuracy?
Actual throughput (pcs/min) depends on container length, label web length, and feeding method. Provide your container L×W×H (or diameter), label L×W, and winding direction so our engineers can calculate your exact line cycle rate.
3. Which non-standard customizations and coding modules are available?
We offer thermal ribbon coders, hot-stamp printers, CIJ/TIJ inkjet integration, transparent-label optical sensors, vision barcode inspection, NG rejection, and 110V/220V/380V country-specific electrical standards.
4. How do I send samples for free test labeling or get a formal quote?
Simply submit the RFQ form below or contact us on WhatsApp (+86 15549490127). Ship 20–50 sample containers and 1 label roll to our Dongkeng, Dongguan factory—we will record a full HD test-labeling video for your approval free of charge.
5. Who handles engineering scheme design, FAT acceptance, and cross-border after-sales?
Our 10-person senior mechanical & PLC team (8+ years experience) oversees your project. Every shipment includes full FAT video verification, English/localized operation manuals, circuit schematics, toolkits, and 1-on-1 remote video commissioning.
Request a Machine Quote or Free Sample Labeling Test — T116
Tell us about your container and label dimensions. Our senior automation engineer will reply within 12 hours with a matched machine recommendation, parameter sheet, and FOB/CIF quotation.
